[caption id="attachment_1256" align="alignnone" width="750"]

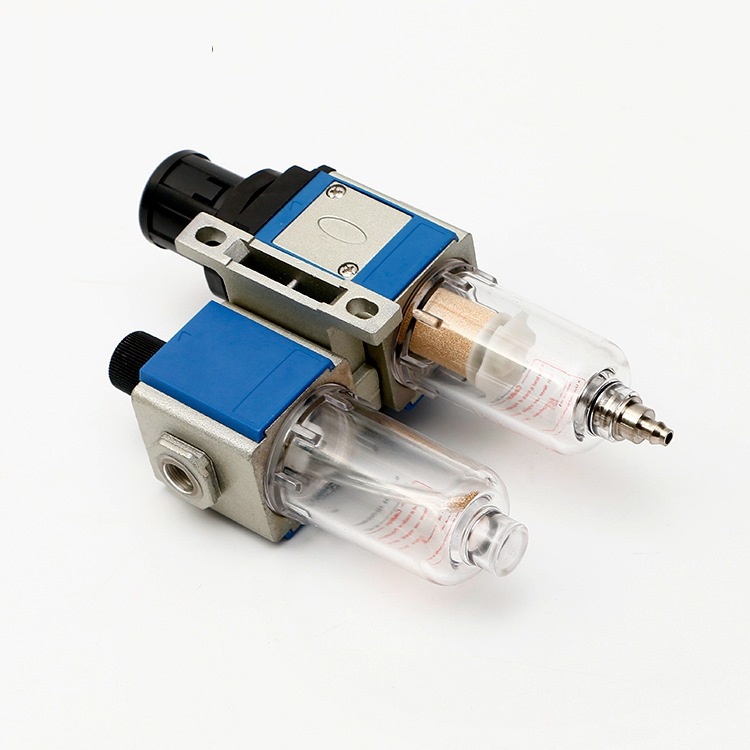

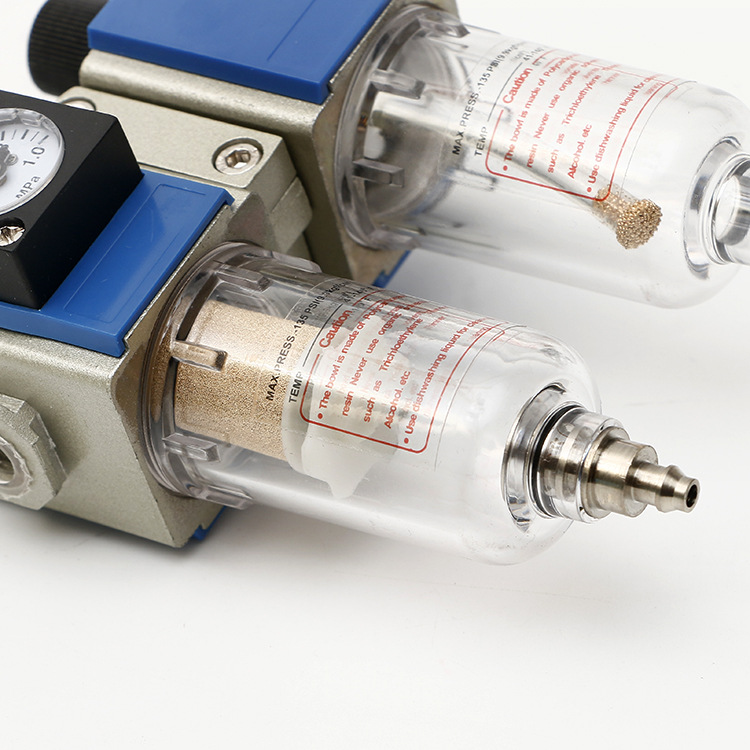

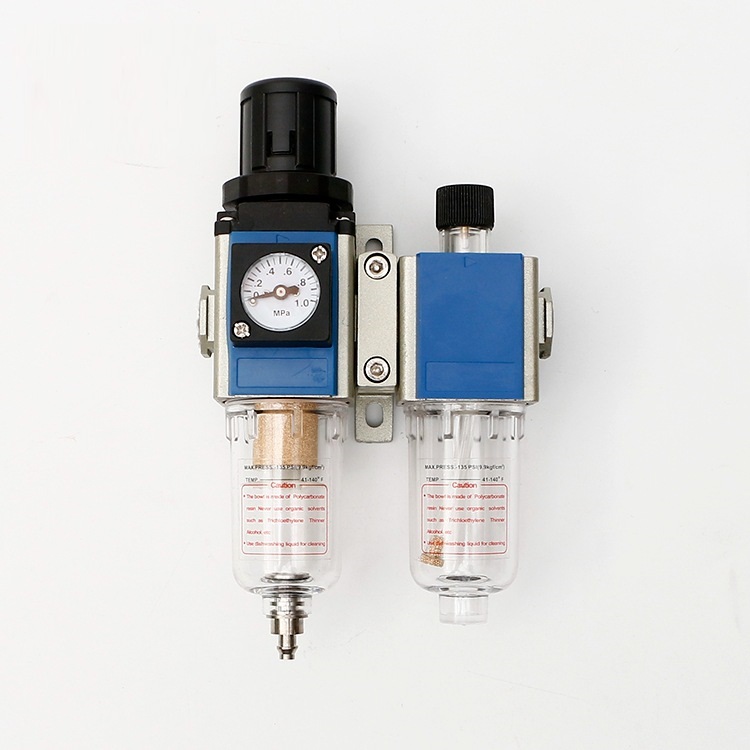

China Filtro Regulador e Lubrificador[/caption]
| Model | GC200-06 | GC200-08 | GC300-08 | GC300-10 | GC300-15 | GC400-10 | GC400-15 | GC600-20 | GC600-25 |
| Filter | GF200-06 | GF200-08 | GF300-08 | GF300-10 | GF300-15 | GF400-10 | GF400-15 | GF600-20 | GF600-25 |
| Regulator | GR200-06 | GR200-08 | GR300-08 | GR300-10 | GR300-15 | GR400-10 | GR400-15 | GR600-20 | GR600-25 |
| Lubricator | GL200-06 | GL200-08 | GL300-08 | GL300-10 | GL300-15 | GL400-10 | GL400-15 | GL600-20 | GL600-25 |
| Capacity of drain bowl | 10cc | 40cc | 80cc | 230cc |
| Capacity of oil bowl | 25cc | 75cc | 160cc | 380cc |
| Weight | 580g | 1300g | 2360g | 5550g |
| Filtering grade | 40um or 5um |
| Pressure range | semi-auto drain and automatic drain:0.15-0.9Mpa(20-130psi), manual drain:0.05-0.9Mpa(7-130psi) |
| Max pressure | 1.0Mpa(145psi) |
| Proof pressure | 1.5Mpa(2015psi) |
| Temperature range | -5-70℃ |
| Reconmmend lubricant | ISO VG32 or equivalent |
Characteristics:
1.Oil dripping adopts gap seal structure,which makes the adjustment of oil supply more reliable
2.Oil feed ring can only make one full turn,The quantity of oil supply ,basically takin on linear ditribution
3.Filling of oil while the lubricator is under pressure is made possible
4.Special drip nozzle structure will produce negative pressure in oil dripping outlet and the mist flow is minimal
5.Quick and reliable mounting clamps makes it convenient to install and use
6.The performance of pressure adjustment is reliable with high precision
7.The efficiency of eliminating moisture and solid grain is high
8.Three drai types are available:manual drain,semi-auto drain and automatic drain
