| Technical Specification | |
| Fluid | Air |
| Pressure resistance | 1.32MPa |
| Max. working pressure | 0~0.9MPa |
| Environment and fluid temperature | 0~60°C |
| Applicable hose | PU hose |
| Material | Galvanized iron |
|

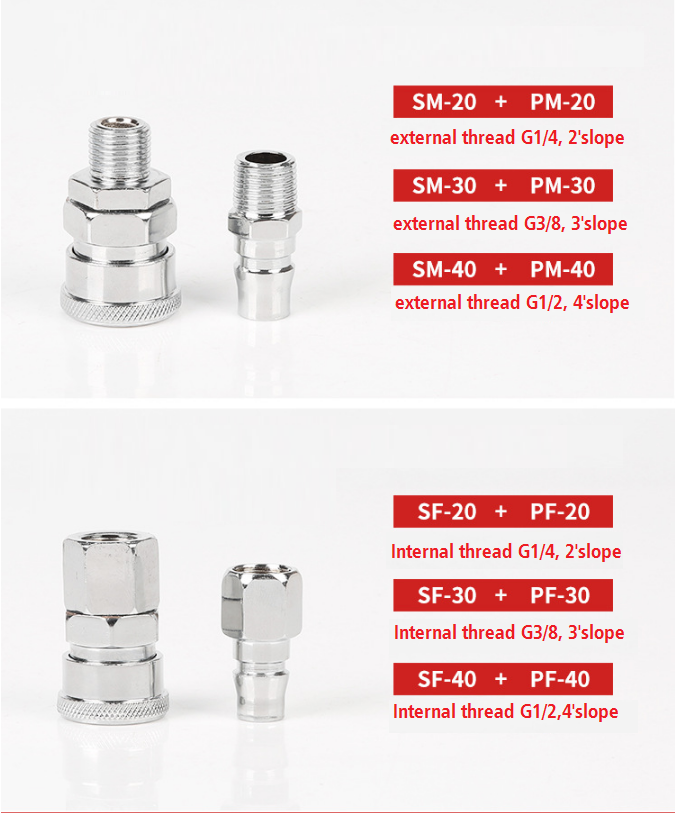

Model Specification |
|||
| Series | I.D. of thread (mm) | Thread size | |
| SF/ PF series | SF20/ PF20 | About 13mm | 2′ slope |
| SF30/ PF30 | About 16mm | 3′ slope | |
| SF40/ PF40 | About 20mm | 4′ slope | |
| SM/ PM series | SM20/ PM20 | About 13mm | 2′ slope |
| SM30/ PM30 | About 16mm | 3′ slope | |
| SM40/ PM40 | About 20mm | 4′ slope | |
| I.D. of inserted tube (mm) | |||
| SH/ PH series | SH20/ PH20 | 8~9 | |
| SH30/ PH30 | 10~11 | ||
| SH40/ PH40 | 12~13 | ||
| O.D. of inserted tube (mm) | I.D. of inserted tube (mm) | ||
| SP/ PP series | SP20/ PP20 | 8 | 5 or 5.5 |
| SP30/ PP30 | 10 | 6.5 | |
| SP40/ PP40 | 12 | 8 | |
