4M310 Namur Series Air operated pneumatic solenoid valves

Power:Solenoid

Material:Alloy

Temperature of Media:Medium Temperature

Media:Air

Application:General

Acting:Internal piloted

Port size:Inlet=Outlet=1/4'' BSP

Orifice size:16.0mm2

Valve type:2 position 5 port

Operating pressure:0.15~0.8mpa/21~114psi

Proof pressure:1.5mpa/215psi

Temperature:-20-70 Degree-C

Max. frequency:5 cycle/sec

Pneumatic Valves

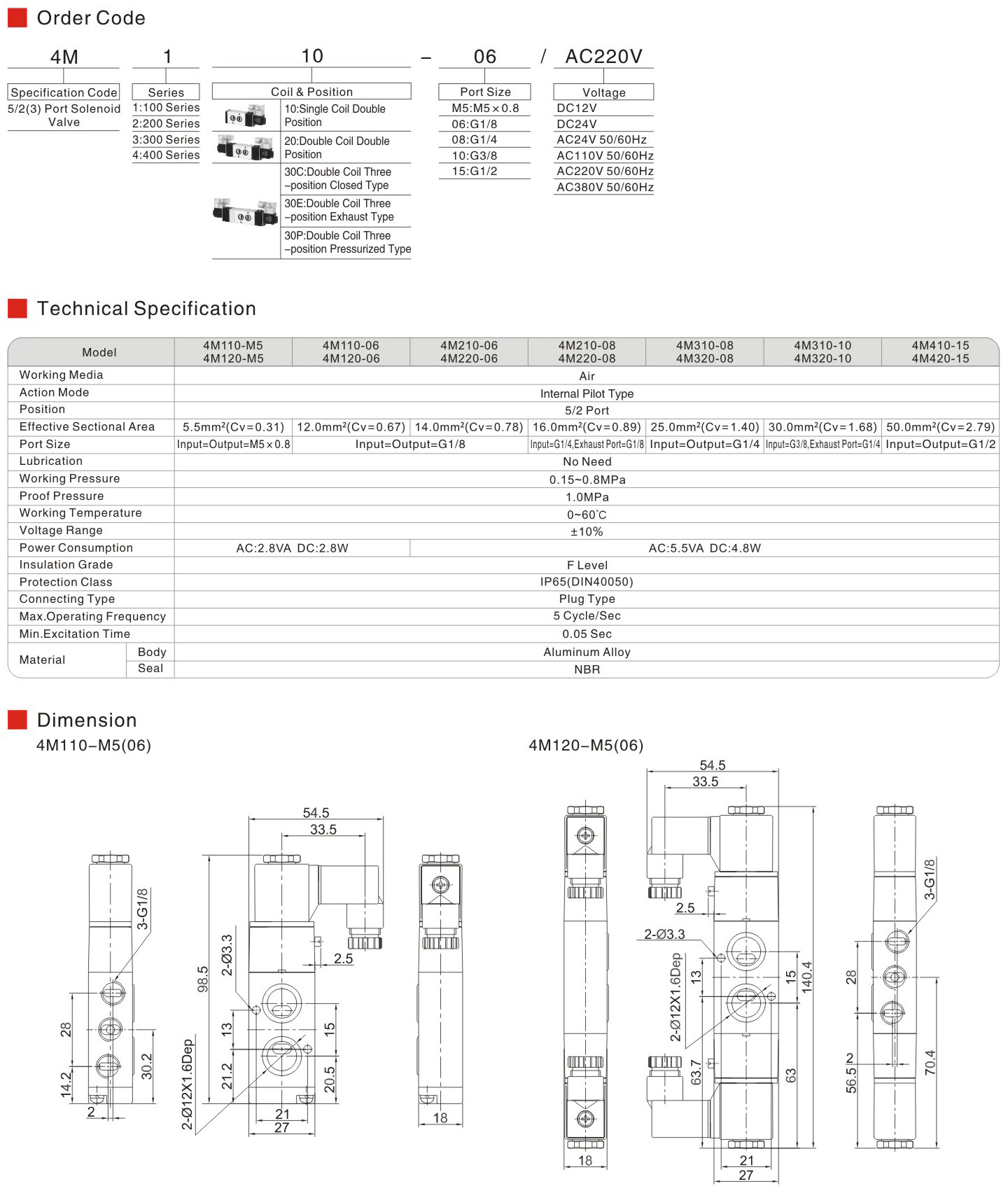

Specification:

Model	4M110-06 4M120-06	4M210-06 4M220-06	4M210-08 4M220-08	4M310-08 4M320-08	4M310-10 4M320-10	4M410-15 4M420-15
Fluid	Air(to be filtered by 40um filter element)
Acting	Internal piloted
Port size	In=Outlet=1/8”		Inlet=Outlet=1/4”		Inlet=Outlet=3/8”	Inlet=Outlet=1/2”
Valve type	2 position 5 port
Orifice size	12.0mm² (cv=0.67)	14.0mm² (cv=0.78)	16.0mm² (cv=0.89)	25.0mm² (cv=1.4)	30.0mm² (cv=1.67)	50mm² (cv=2.79)
Lubrication	Not required
Pressure range	0.15~0.8Mpa(21~114Psi)
Proof pressure	1.5Mpa(215Psi)
Temperature range	-20~70℃
Body material	Aluminum alloy
Max. frequency	5 cycle/sec			4 cycle/sec

Note: 1.PT thread,NPT thread and G thread are available.

2.Once lubrication is used,continue with same medium to optimise valve life span.Lubricants like ISO VG32 or equivalent are recommended.

3.The maximum actuation frequency is in the no-load state.

Coil Specification:

Item	4M110 4M120	4M210 4M220 4M310 4M320 4M420
Standard voltage	AC220V,AC110V,AC24V,DC12V,DC24V
Scope of voltage	AC:±15% DC:±10%
Power consumption	AC2.5VA DC:2.5W	AC:3.5VA DC:3.0W
Protection	IP65(DIN40050)
Temperature classification	B Class
Electrical entry	Terminal,Grommet
Activating time	0.05 sec and below
